18650 button-top lithium-ion cells across standard and protected configurations. Standard-model sourcing and OEM/ODM available.

Customization Options

  • Battery cell type and capacity
  • Protection PCB and terminal configuration
  • Packing method

Key Features

  • 3.7V nominal voltage across included 18650 models
  • 1200mAh, 2600mAh, and 3500mAh capacity options
  • Button Top positive terminal configuration
  • 3C maximum continuous discharge rating
  • Standard and protected model options

Category: Tags: , , , ,

Inquiry

Share

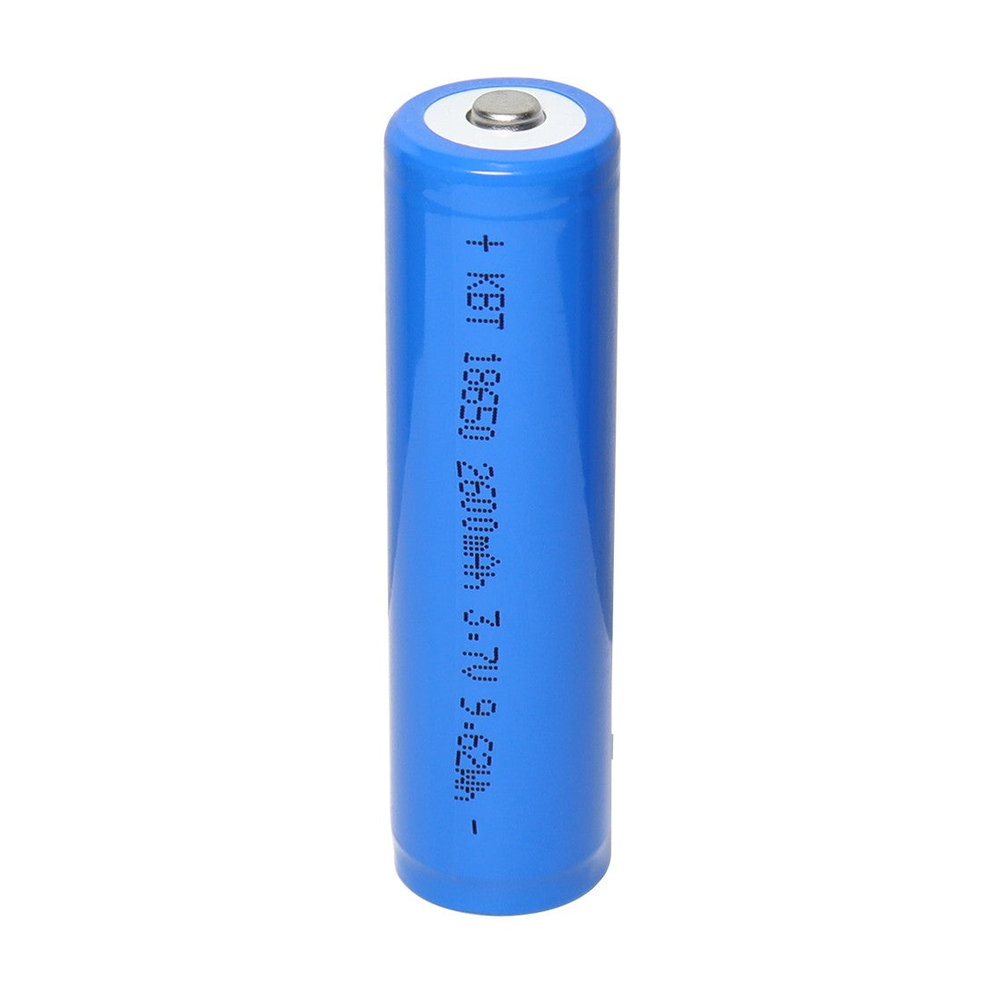

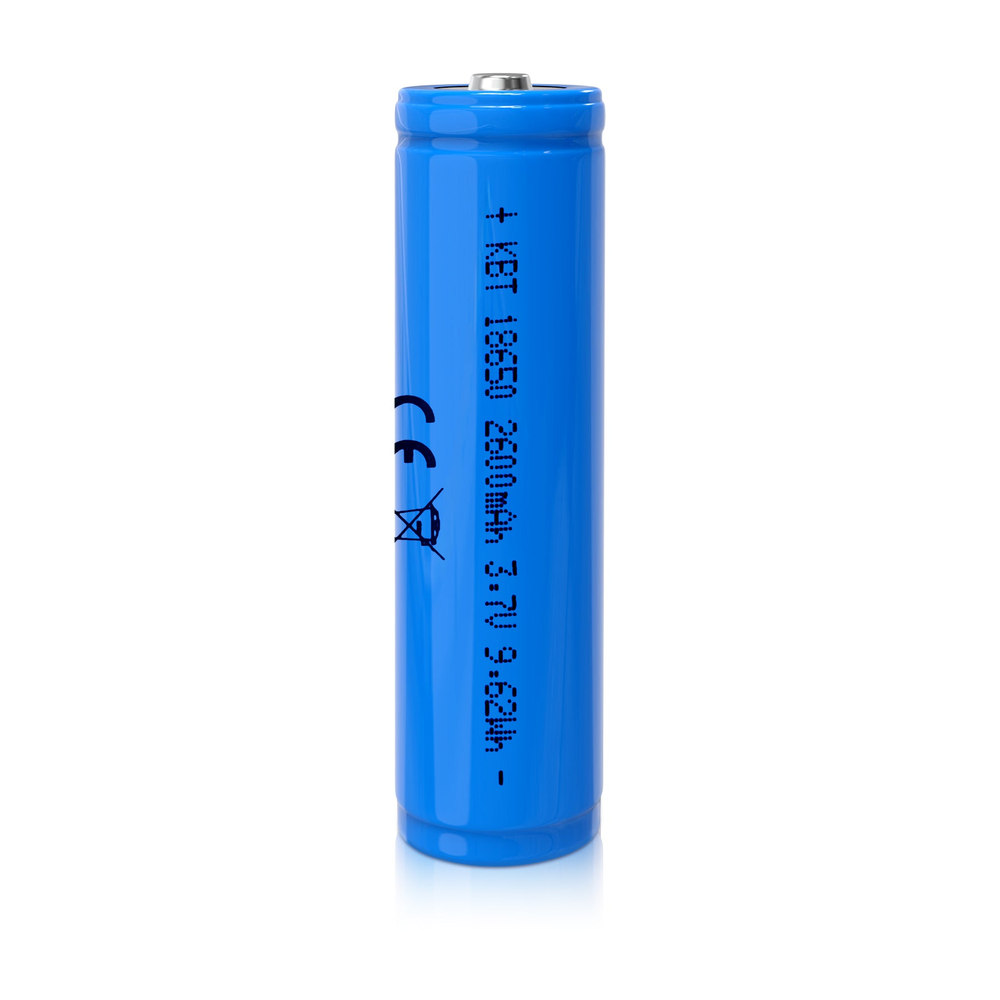

ItemKBT18650-1200KBT18650-2600KBT18650-2600-PCBKBT18650-2600-PCB-NPL.G18650-3500
ManufacturerKBT BATTERYKBT BATTERYKBT BATTERYKBT BATTERYKBT BATTERY
ChemistryLithium-ionLithium-ionLithium-ionLithium-ionLithium-ion
Size1865018650186501865018650
Diameter18mm18mm18mm18mm18mm
Length65mm65mm70mm70mm70mm
Positive TerminalButton TopButton TopButton TopButton TopButton Top
Capacity1200mAh2600mAh2600mAh2600mAh3500mAh
Continuous Discharge Rating (max)3C3C3C3C3C
Nominal Voltage3.7V3.7V3.7V3.7V3.7V
Maximum Voltage4.2V4.2V4.2V4.2V4.2V
Discharge Cut-off Voltage2.5V2.5V2.5V2.5V2.5V
ProtectedNotNotYesYesYes
RechargeableYesYesYesYesYes
Approx. Weight35g45g47g47g45g
