| Parameter | Specification |
|---|---|
| Model | KBT-751424PL |
| Battery Type | Li-Polymer |
| Size | 14 x 24 x 7.5mm |
| Capacity | 220mAh |
| Energy | 0.814Wh |
| Continuous Discharge Rating (max) | 2C |
| Nominal Voltage | 3.7V |
| Maximum Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.5V |
| Protected | Yes |
| Rechargeable | Yes |
| Cycle Life | 800 cycles |
| Approx. Weight | 5g |

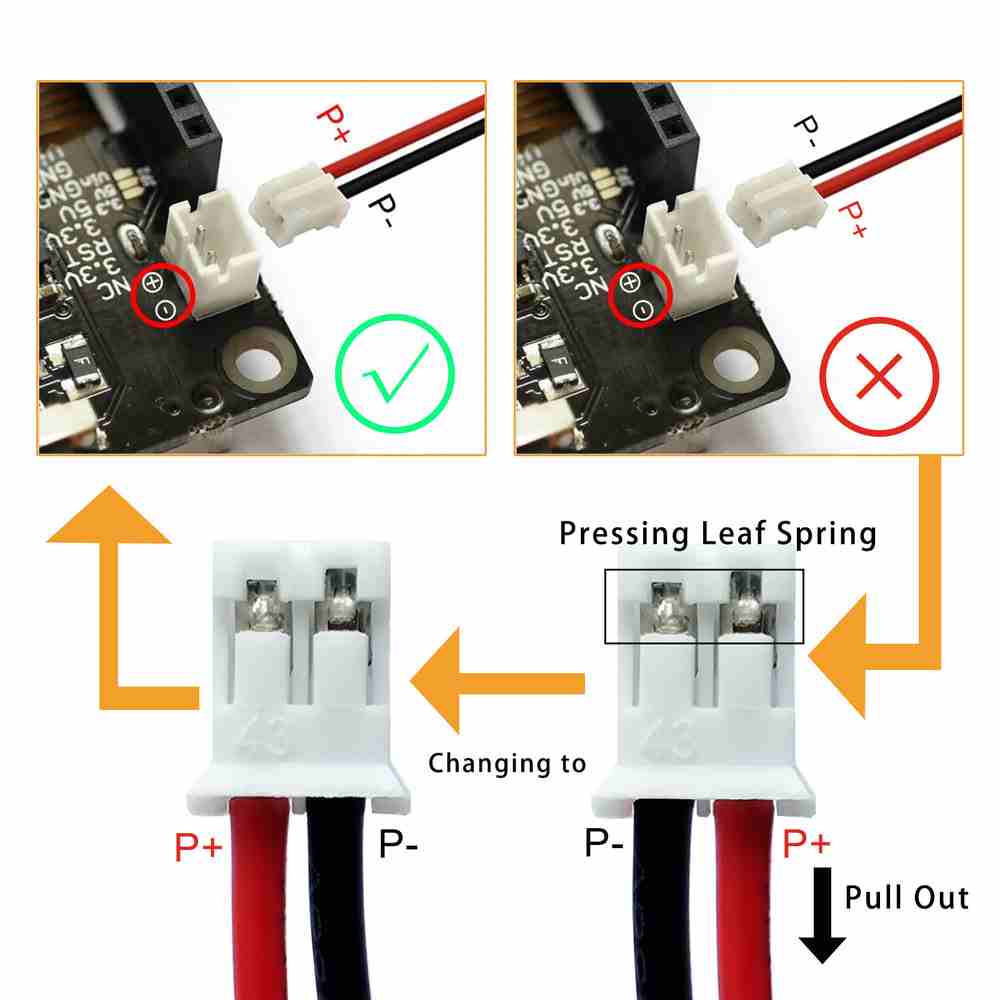

| Connector | 2Pin 1.25 JST Connector |
And we will contact you within 24 hours
For more questions visit our help center.
Yes. KBT can evaluate OEM/ODM requirements including voltage, capacity, dimensions, discharge current, cell type, BMS, cables, connectors, terminals and packaging. Please share your application and technical requirements for review.
Sample or small-batch validation can be arranged according to the product and project requirements. Specifications are confirmed before sampling so performance, fit and compatibility can be evaluated before mass production.
Quality control covers key stages from incoming materials and cell matching to assembly, performance testing and finished-product inspection. The exact inspection and reliability testing plan depends on the selected model and application.
Compliance and transport documentation can be reviewed for the specific product, including applicable UN38.3, MSDS, air or sea transport reports and other requested documents. Availability must be confirmed by model and destination market.
