Reliable Li-ion, LiPo and LiFePO4 battery packs, chargers and cells, with custom BMS, cable, connector and pack
| Item | KBT18650-1200 | KBT18650-2200-10C | KBT18650-2600 | KBT18650-3200 |
|---|---|---|---|---|
| Manufacturer | KBT BATTERY | KBT BATTERY | KBT BATTERY | KBT BATTERY |
| Chemistry | Lithium-ion | Lithium-ion | Lithium-ion | Lithium-ion |
| Size | 18650 | 18650 | 18650 | 18650 |

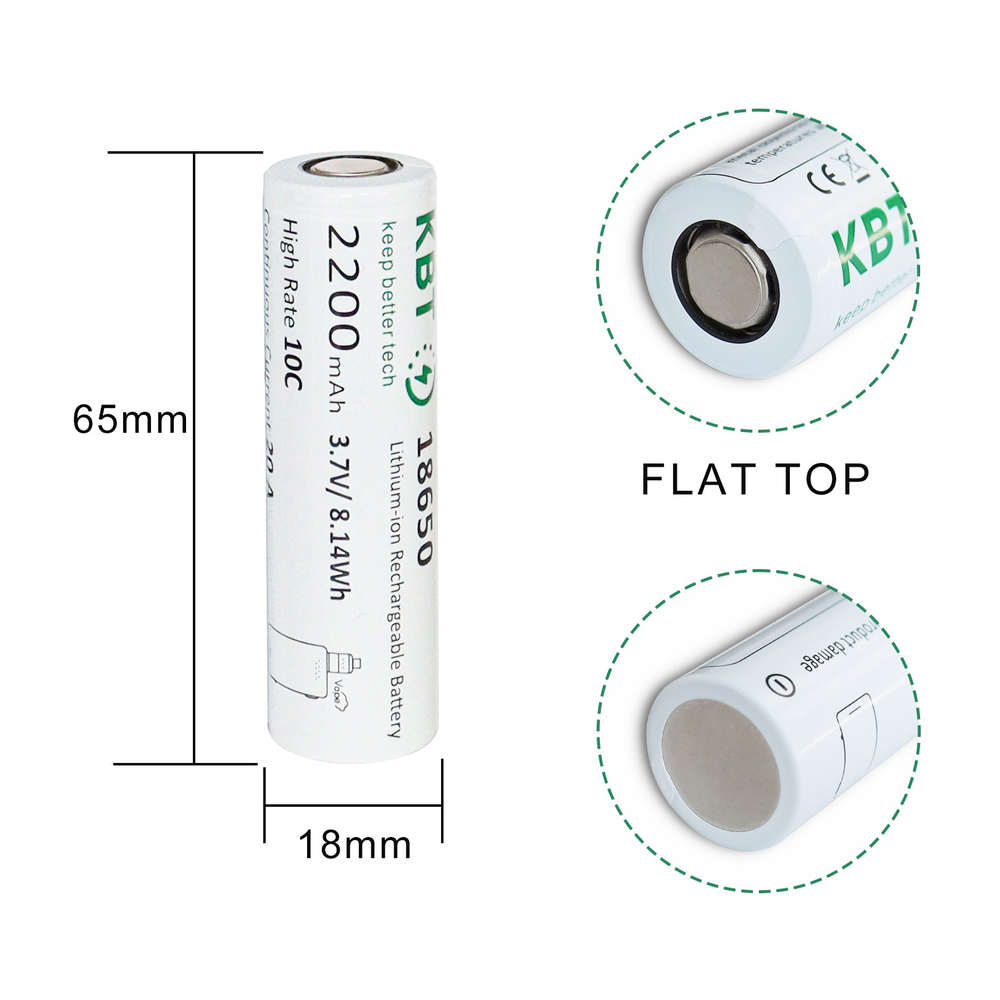

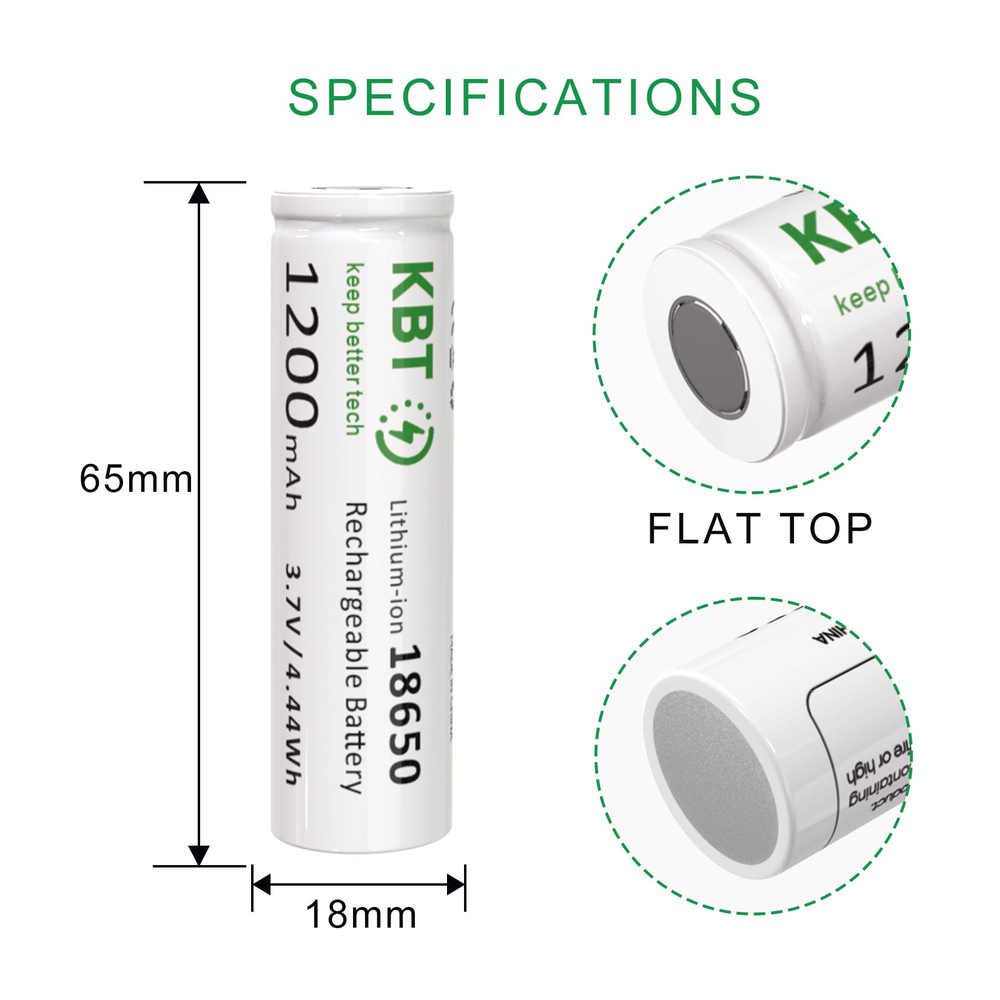

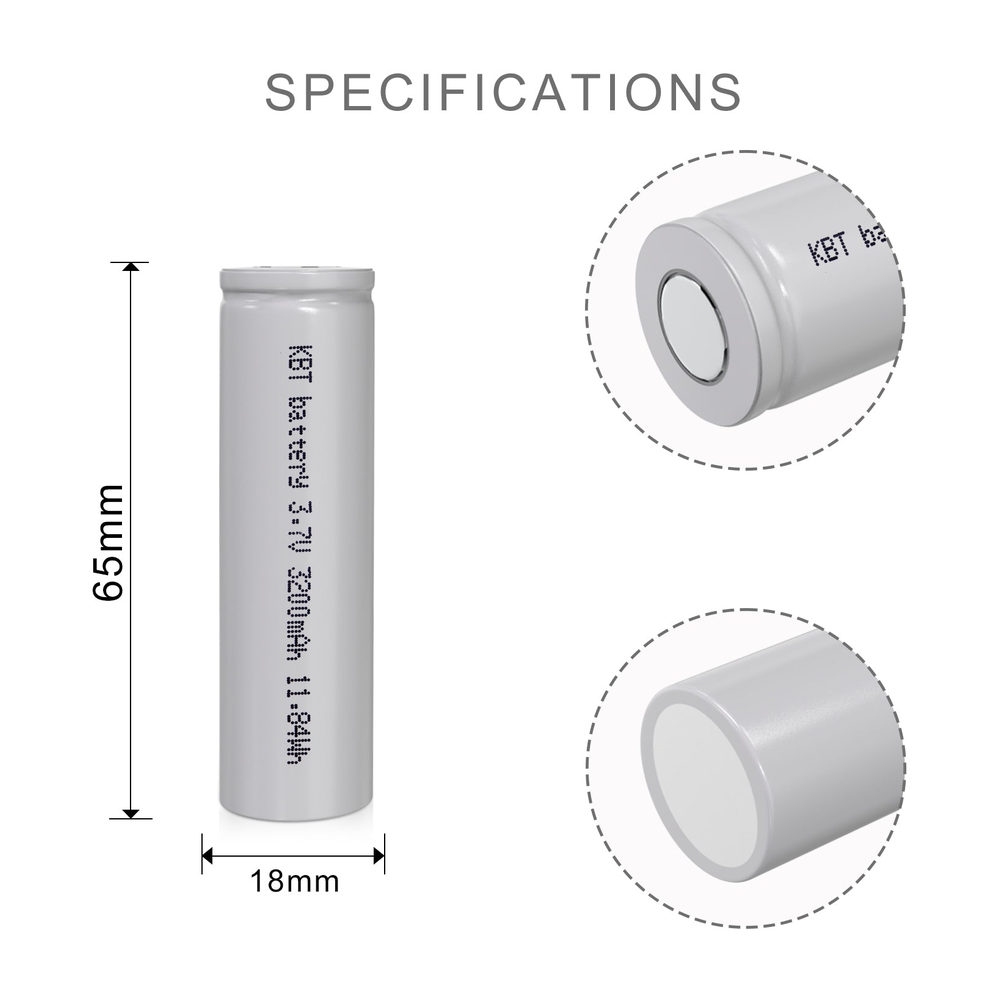

| Diameter | 18mm | 18mm | 18mm | 18mm |
| Length | 65mm | 65mm | 65mm | 65mm |
| Positive Terminal | Flat Top | Flat Top | Flat Top | Flat Top |
| Capacity | 1200mAh | 2200mAh | 2600mAh | 3200mAh |
| Continuous Discharge Rating (max) | 3C | 10C | 3C | 3C |
| Continuous Discharge Current (max) | Not specified | 20A | Not specified | Not specified |
| Nominal Voltage | 3.7V | 3.7V | 3.7V | 3.7V |
| Maximum Voltage | 4.2V | 4.2V | 4.2V | 4.2V |
| Discharge Cut-off Voltage | 2.5V | 2.5V | 2.5V | 2.5V |
| Protected | Not | Not | Not | Not |
| Rechargeable | Yes | Yes | Yes | Yes |
| Rechargeable Cycles | 800 | 800 | 800 | 800 |
| Approx. Weight | 35g | 44g | 44g | 48g |
